Complete Guide To High Rupturing Capacity (HRC) Fuses

The whole world is dark, but it is due to electricity that we live in this world with comfort and ease. Electricity has made our lives so easy that we can enjoy our lives the most. So, we all should save electricity and should know about electrical appliances.

Electrical appliances are of daily use, and we should have the right information about these devices. High Rupturing Fuse, also known as HRC Fuse, is a daily use device. Today, in this, we will tell you about this fuse, and we will guide you about this fuse, its use, and all of its information.

What Is A HRC Fuse?

High Rupturing Fuse is one of many types of fuses in which this type of fuse carries a short amount of circuit current in an allotted time. If any fault occurs in the circuit, HRC Fuse immediately blows off. It is generally made out of glass, otherwise chemical material.

This inside is adequate airproof to keep away from the impact of the environment on the wire materials. The inside space has a metal end cap at the two heads, to which fusible silver wire gets welded. A space inside the walled-in area, encompassing the wire or circuit component, is loaded with a filling powder.

Construction Of HRC Fuse

The making of this fuse is very simple. The HRC fuse includes a high heat resistant body called a ceramic substance, and this ceramic consists of a metal type of cups welded with silver wire.

The internal part of all the HRC Fuse is a powder form, and the quartz is the plaster of Paris, dust, marbles, and chalk. The function enables the device not to get overheated. All this process is due to the chemical reaction that is taking place inside the HRC Fuse.

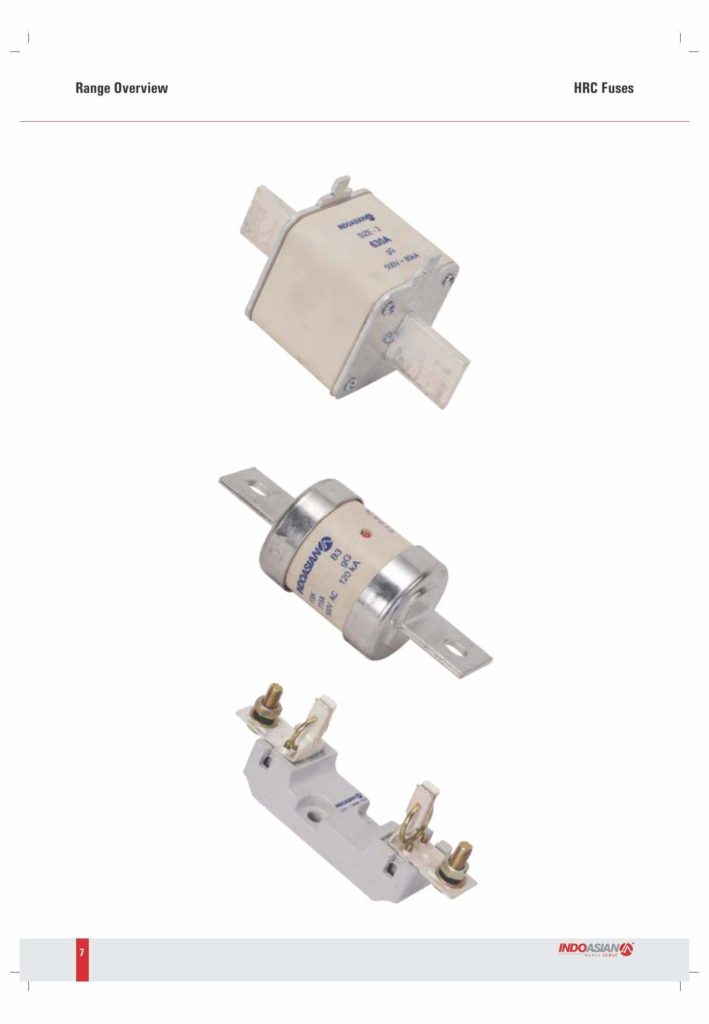

Types Of HRC Fuse

There are so many types of this fuse. But the three main types of HRC Fuse are given below.

1) NH Type Fuse

2) Din Type Fuse

3) Blade Type

Advantages Of HRC Fuse

There are many advantages of this fuse, but here we will only discuss a few of them.

1) These fuses are cheaper as compared to all other fuses.

2) HRC Fuse is very easy to design and can easily be installed.

3) The maintenance of this fuse is not necessary and is durable.

4) It is a consistent performer, and you can operate it efficiently.

Application Of HRC Fuse

There are some of the applications of HRC Fuse given below.

1) These are used to protect from short circuits in HV gears.

2) They can also be used for backup safety.

3) HRC Fuse can protect all electrical devices such as motors, generators, and automobiles.

In this article, we have told you about the complete guide to HRC Fuse and all of its uses, advantages, and applications it is being used.
